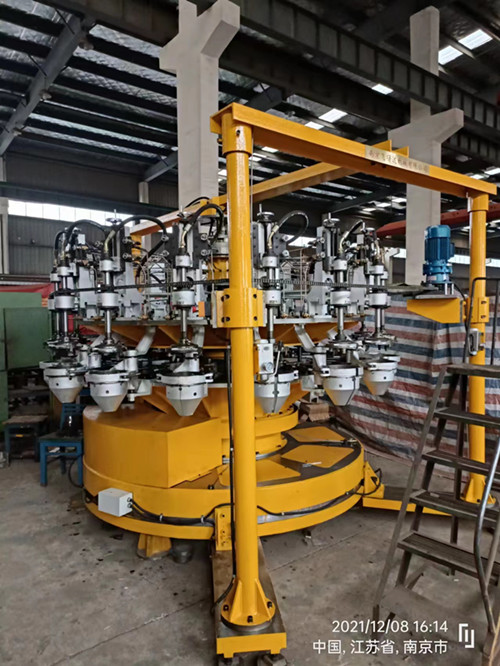

I．Usage:
This machine is a sixteen mould gob blowing  machine and is provided with Model BLD450 Gob-Fed Machine. Press-blow forming process is adopted. This machine is suitable for glass instrument factories, glassware factories and vacuum bottle factories to blow thin-walled glass products such as flasks, Erlenmeyer flasks, coffee sets and vacuum bottles especially borosilicate glass products.

II．Main technical parameters:

1).Output:12-48pieces per minute;
2).Power of electric motor:4KW;
3).Speed of electric motor:1400r/min;
4).Overall dimensions:4000 2850mm;
5).Weight:20t;
3.Products to be blown:
1).Maximum diameter:200mm;
2).Maximum length:400mm;
3).Wall thickness:0.3-3mm;
4).Maximum gob drop weight:1000g;
5).Maximum products weight:650g;

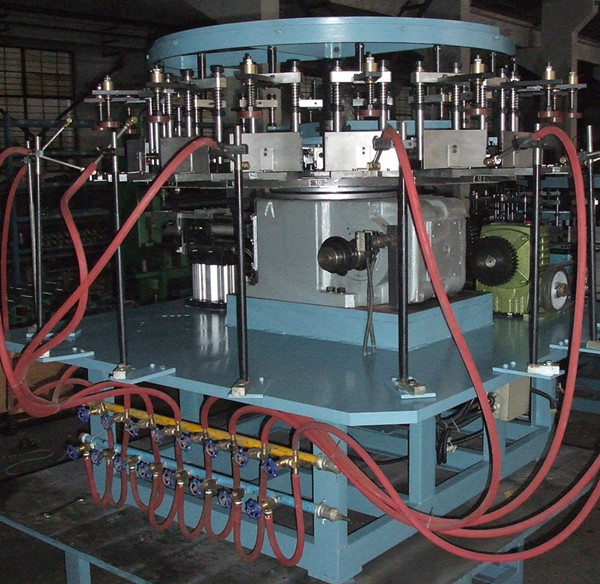

BRB16 Cracking-off machine

BRB16 Cracking-off machine is a follow-up processing equipment used to melt the cap and polish the mouth of glass products produced by BLBH16 blower. It can be used together with BLBH16 or alone.

The Cracking-off machine mainly sucks the semi-finished products through the suction cup, and then cuts and rounds the mouth after being preheated by the flame, so as to complete the cutting of the material cap and make the utensils with uniform size, flat, smooth and beautiful.

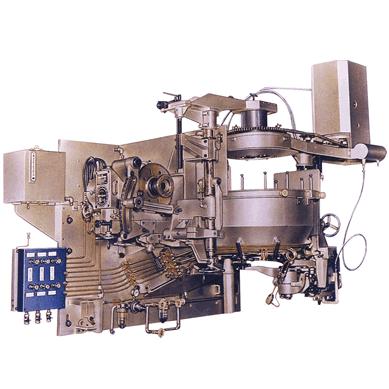

BLD450 feeder

BLD450 feeder
(used with BLBH16 bubble blower)

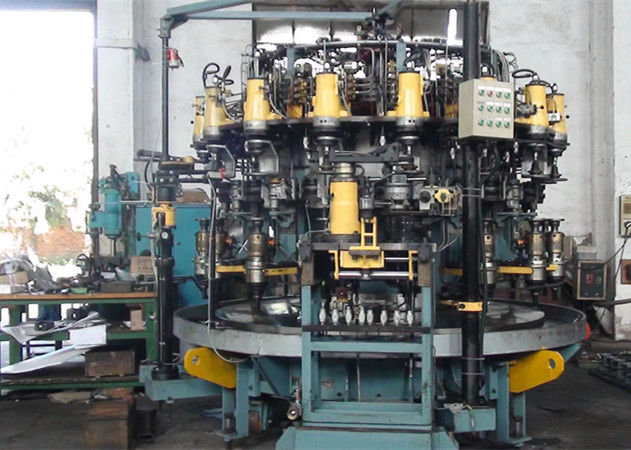

BN16x nozzle pinching machine

BN16x nozzle pinching machine is an automatic production equipment used to process the mouth of glassware. Its "mouth" forming process includes "straight mouth" and "curved mouth"; There are two structural forms of "upper pinch nozzle" and "lower pinch nozzle" in the structure of the machine. It is suitable for mouth processing of burners, coffee pots and other utensils.

Main technical parameters:

Machining diameter: Ф 50～ Ф 160
Processing height: 50mm ~ 300mm
Processing speed: 10 ~ 30 pieces
Number of jobs: 12
Steering: counterclockwise
Number of fires: 6
Motor power: 1.5kw
Air pump pressure: 0.4MPa
Overall dimension: 1800 × 1800 × 2000
Weight: 1T

BBQ250 bubble blower

1. Product model: BBQ250

2. Product purpose:
This machine is a 16 position thin-walled glass blowing machine equipped with automatic bottom mold lifting mechanism. The feeding machine adopts BLD450Q produced by our company. The forming process adopts pressure blowing forming process, which is suitable for blowing thin-walled glass products such as beakers, triangular bottles and bulbs.
