I．Usage:

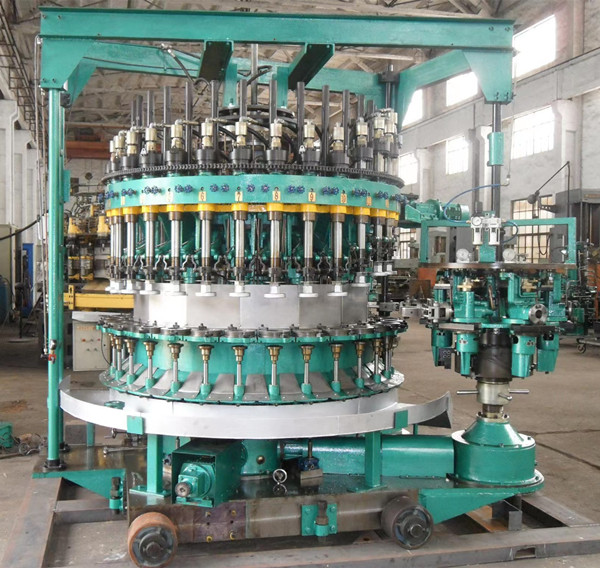

It is the dominant glass ware forming machine in the word, dependable rotary with a single table, having 12 individual sections. Each section produces by press&blow with a single gob. This machine is suitable for glassware factories to produce many kinds of shapes of glassware, such as tumbler, goblet etc.

II. Main technical parameters:

1. Output: 36－64pcs/min；

2．Power of electric motor：7.5KW；

3．Overall dimensions：4.6mmⅹ4.0mmⅹ2.8mm；

4．Weight：14.5t；

III．Products to be blown：

1. Diameter：35－100mm；

2. Height：51－165mm；

3. Capacity：0.03－0.51L；

4. Weight of its products：30－500g.

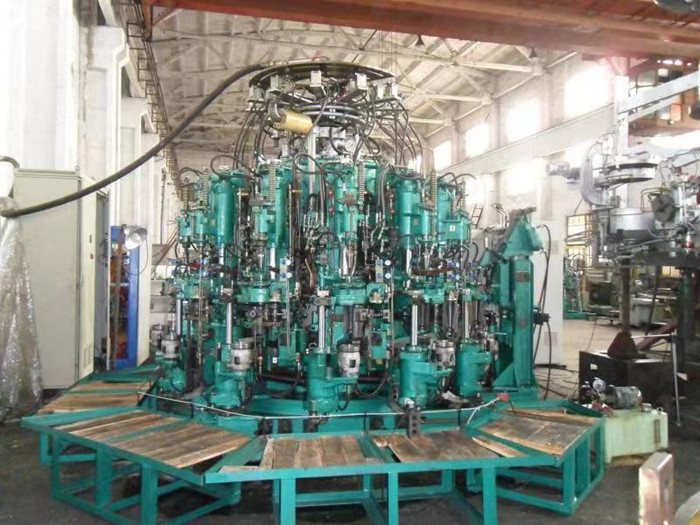

H-28 Pressure blower

I. Usage:
It is the dominant glass ware forming machine in the word, dependable rotary with a single table, having 12 individual sections. Each section produces by press&blow with a single gob. This machine is suitable for glassware factories to produce many kinds of shapes of glassware, such as tumbler, goblet etc.

II. Main technical parameters:
1. Output: 36-64PCS/min;
2. Power of electric motor: 7.5KW;
3. Overall dimensions: 4.6mm*4.0mm*2.8mm;
4. Weight: 20t;

III. Products to be blown:
1. Diameter: 35-100mm;
2. Height: 51-170mm;
3. Capacity: 0.03-0.51L;
4. Weight of its products: 30-400g.
